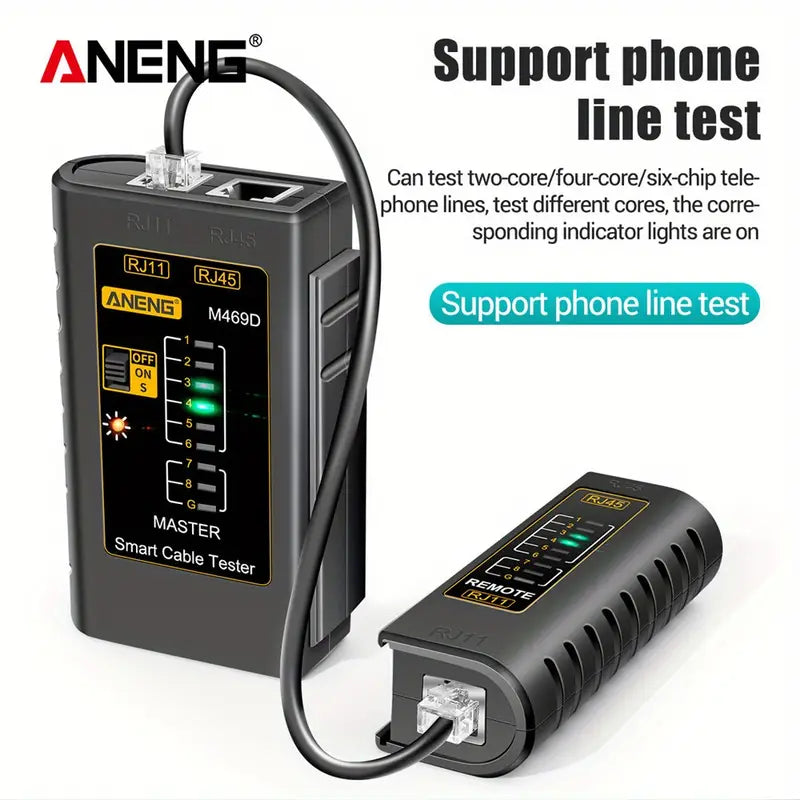

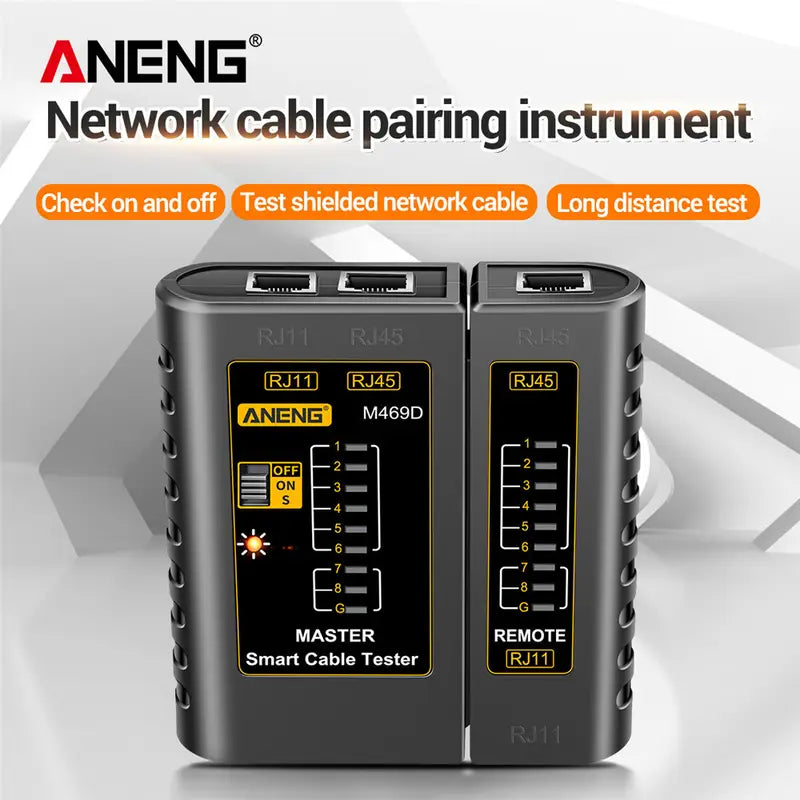

ANENG M469D RJ45 Cable Tester Network Line And Telephone Line

Power Mode: Battery Powered

Operating Voltage: ≤36V

Battery Properties: Without Battery

See all details

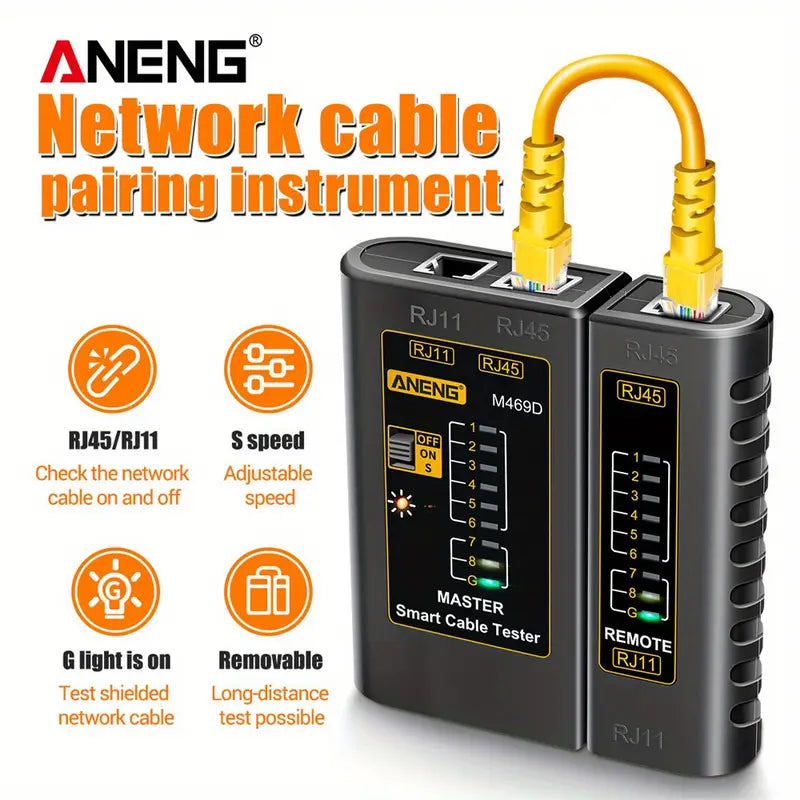

ANENG M469D Cable lan tester Network Cable Tester RJ45 RJ11 RJ12 CAT5 UTP LAN Cable Tester Networking Tool network Repair Feature: 1-1:quickly abd easily checks network cables 1-2:checks open and short terminals,straight through or crossover wiring types. 1-3:ideal for I.T. enthusiasts who wish to make their own network cables. 1-4:operates from a single 9V battery(Not Include)

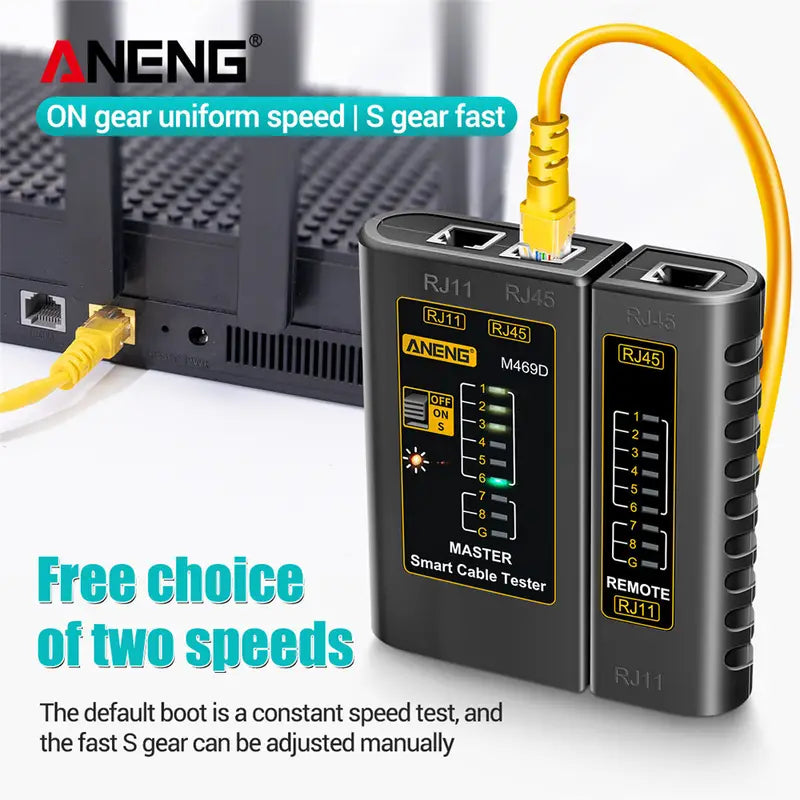

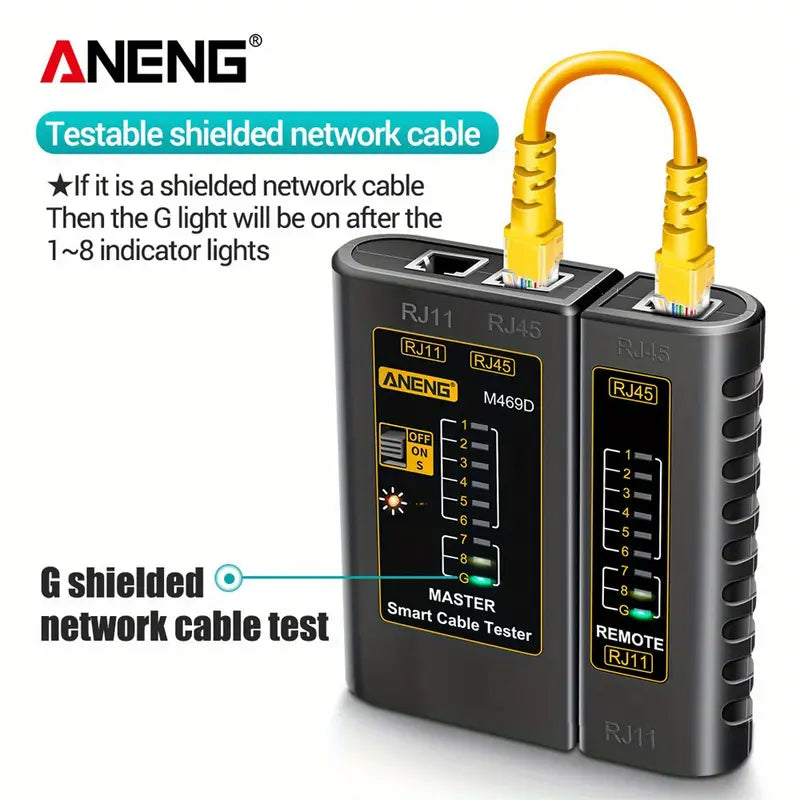

Test of double-twisted cables: For Switch on the power. (S is slow automatic grade, Mis manual.) Put cables into both main tester and remote tester. The lights of the main tester will turn on sequently form 1 to G. Warning: This cable tester cannot test any electrified product. 9V reduplicated battery is used in this tester.Battery is advised to change if any weak light appears.

Tester cannot be done while RJ45's copper wire connector are not totally pressed.Any disobeys,may lead to a permanent damage of the tester end. Pls use quality tools to press the cables. Main tester: 1-2-3-4-5-6-7-8-G Remote tester: 1-2-3-4-5-6-7-8-G RJ45 1-2-3-4-5-6 RJ11 Following are abnormal connections: If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tseter and remote tester will not turn on.

If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on. If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays on: Main tester: 1-2-3-4-5-6-7-8-G Remote tester: 1-4-3-2-5-6-7-8-G

If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on. If test patch panels or wall plate outlets, two cables which can match each other (RJ45) will be connected to the tester. If test cables of the same axes, BNC turns on when the cable works.

9V reduplicated battery is used in this tester. Battery is advised to change if any weak light appears.( Battery is not included)
